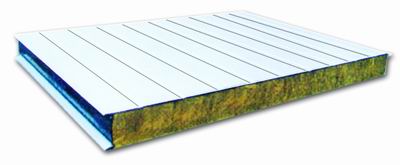

PRE-INSULATED COLD STORAGE PANELS
|
This Cold Storage panel meets every single requirement of today's modern cold Storage, Controlled Atmosphere Storage, Pack House, Shelters & Clean Room Enclosure, backed by PUNJSTAR INDUSTRIES PVT. LTD. the acknowledged leader in Thermal Insulation
The Main Features of the Pre-Insulated Cold Storage Panels are:
Design: The Design of modular cold rooms & shelters is based on the size of the room and its operating temperature requirements. The correct panel thickness and dimension forms the integral design of the room. For room size up to 6 meter height a modular self supporting system is recommended or else a Structural Steel frame work is erected to which panels are bolted from outside on to the walls as well as ceiling and joints covered with a flashing. The ceiling is further protected by providing single skin metallic roofing over the ceiling panels with light frames to act as rain & snow guard.
Thermal and Load Characteristics
Thickness |
mm |
60 |
80 |
100 |
120 |
150 |
200 |
‘U’ Values |
W/m² K |
0.36 |
0.26 |
0.21 |
0.19 |
0.14 |
0.11 |
Panel Weight |
Kg/m² |
11.25 |
12.05 |
12.85 |
13.65 |
14.85 |
16.85 |
|
